Hella Horn Wiring Diagram . Sound pressure level 2 m away: Joined apr 21, 2008 messages 1,453 location so cal.
Olm Hella Horn Harness V2 15 19 Wrx Sti 13 Ft 86 13 17 Crosstrek 14 18 Forester Subispeed from images.jbautosports.com The above horn wiring diagram show the schematic symbol for a relay. On some cars you may find 2 wires connected to the switch. Or decided to wire up something this way for some reason maybe via a push button switch. One wire goes to the horn switch, one to the horn relay, if you ground one, the oem horns will go off, the other is the steering wheel horn switch. The magnetic field is shown by the dashed line on the common armature and no contacts.
With horns mounted, if you pick the left connector on the 1st horn, then pick the same left connector on the 2nd one. My guess is that you could splice into the existing horn wire and be fine. Hella horn relay wiring help/diagram ? The above horn wiring diagram show the schematic symbol for a relay. 4.6 out of 5 stars 2,633. Start date oct 8, 2015; Introducing ijdmtoy's 12v horn wiring harness relay kit for grille mounted blast tone horns.
Source: m.media-amazon.com The above horn wiring diagram show the schematic symbol for a relay. With horns mounted, if you pick the left connector on the 1st horn, then pick the same left connector on the 2nd one. Piggybacking wires if you want all 4 horns, you can piggyback your hella trigger wire onto the back of one of these connectors(the female is the easiet for me).
It has the horn wiring diagram and how to remove and replace the horn if you want to put your hella horns in the factory location. The other connector on each horn connects to. With horns mounted, if you pick the left connector on the 1st horn, then pick the same left connector on the 2nd one.

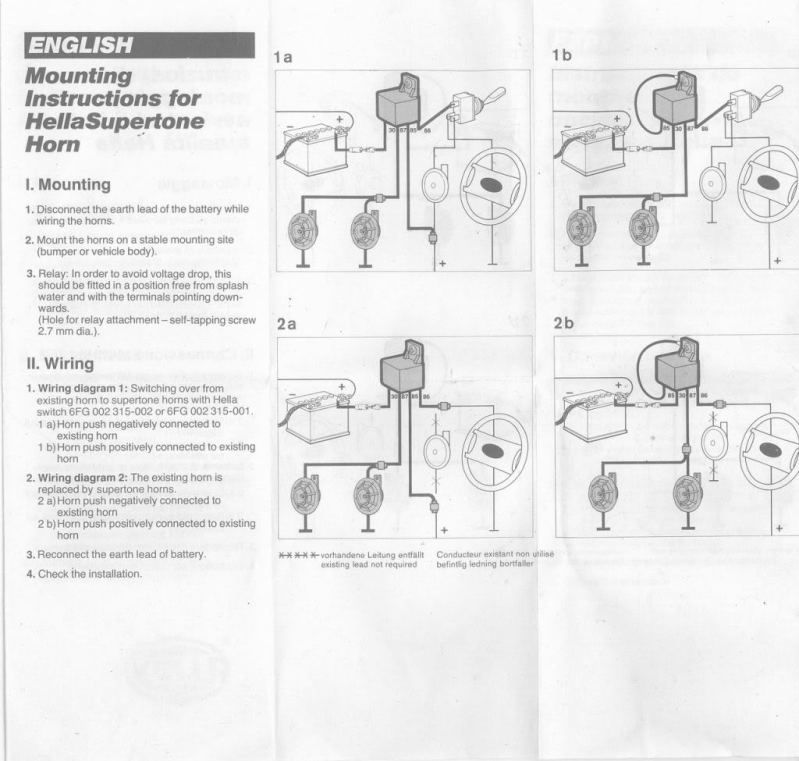

Oct 8, 2015 #1 i did my checking however cannot find a thread or diagram that shows how to wire in an aftermarket horn, in this dual hellas. The magnetic field is shown by the dashed line on the common armature and no contacts. Bought some hella supertones off a friend of mine who got rid of his 08 sti, but he lost the instructions that came with them.
Source: i.ytimg.com Please see questions after the picture below: Please see questions after the picture below: The hella twin supertone horn kit provides a relay.
It has the horn wiring diagram and how to remove and replace the horn if you want to put your hella horns in the factory location. 2a has left to right. I had to remove the bumper from car to access the original horn and wiring, i then attached them to the crash bar behind the grill.
One wire goes to the horn switch, one to the horn relay, if you ground one, the oem horns will go off, the other is the steering wheel horn switch. One wire goes to the horn switch, one to the horn relay, if you ground one, the oem horns will go off, the other is the steering wheel horn switch. Sound pressure level 2 m away:
Source: cdn.shopify.com 1 of 2 go to page. Introducing ijdmtoy's 12v horn wiring harness relay kit for grille mounted blast tone horns. 2a has left to right.
Pick one lug for ground and the other for the output of the relay. It has the horn wiring diagram and how to remove and replace the horn if you want to put your hella horns in the factory location. The sound is loud, and the tone is a bit lower than the red hella horns but still a lot higher than a standard snail type dual tone horn.
My hella supertone 500/300 horns arrived today, as as usual, i am confused as to how to do the electrical. 1 of 2 go to page. See my latest 160 db train horn install here:
Source: i.ytimg.com Diagrams labeled with what i think are the right relay pins. Sound pressure level 2 m away: The other connector on each horn connects to.
Posted by var498 on oct 08 2010. Get it as soon as wed, jun 9. The above horn wiring diagram show the schematic symbol for a relay.
The connectors on the relay are a bit hard to read: On some cars you may find 2 wires connected to the switch. Click the link i provided.
Source: www.fjcruiserforums.com 1 of 2 go to page. See my latest 160 db train horn install here: 4.6 out of 5 stars 2,633.
Next ground each horn by running a wire from the other spade connector on the back to a ground. Introducing ijdmtoy's 12v horn wiring harness relay kit for grille mounted blast tone horns. Any and all help, guidance and slaps in face over bad wiring much appreciated.
Or decided to wire up something this way for some reason maybe via a push button switch. Piggybacking wires if you want all 4 horns, you can piggyback your hella trigger wire onto the back of one of these connectors(the female is the easiet for me). One wire goes to the horn switch, one to the horn relay, if you ground one, the oem horns will go off, the other is the steering wheel horn switch.
Source: hosting.photobucket.com Diagrams labeled with what i think are the right relay pins. Since the horn terminals are polarity free, you need to ensure that both connections are on the same side i.e. When it comes to wiring the hella horns mounted to your beautiful grimmspeed brotie bracket, we have you covered.
Horn switch 12 volts relay wiring the previous wiring example showed the horn switch ground the wire to complete the connection. When it comes to wiring the hella horns mounted to your beautiful grimmspeed brotie bracket, we have you covered. Next ground each horn by running a wire from the other spade connector on the back to a ground.
The above horn wiring diagram show the schematic symbol for a relay. 4.6 out of 5 stars 2,633. Hella horn relay wiring help/diagram ?
